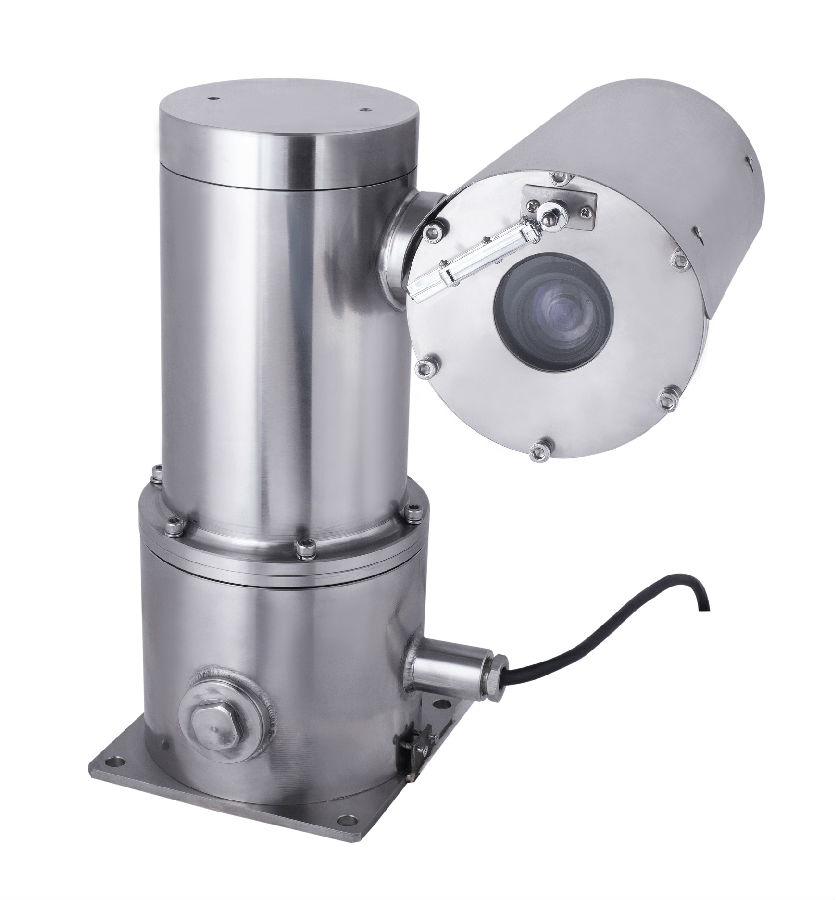

Ex-proof Solar Monitoring System, Using explosion-proof solar panels as an independent power supply, We can make a reasonable allocation of system capacity based on the user's electricity load and resource conditions,We can make the optimal system solution. The system is suitable for the place where the wiring is difficult and the installation and maintenance are difficult, The system is widely used in pipelines, unattended valve chamber, oil monitoring, forest fire prevention, the island off-grid monitoring, border surveillance areas.

Explosion solar monitoring system using single crystal silicon solar cell module, conversion rate. The maximum voltage: 18V, maximum current: 4.16A, 50W / block, It can be installed in hazardous locations which belonging to ExdIICT6 and combustible dust A21 area.It is designed and manufactured according to explosion-proof standards GB3836.1-2010, GB3836.2-2010, GB12476.1-2013, GB12476.5－2013, JB/T9536-1999 ,applications television equipment safety requirements GB14861-1993 and SJ2465-84.

CERTIFICATE

Ex-marking : ExdⅡCT6 / Ex tD A21 IP68 T85℃

ELECTRICAL：

Material :Q235 steel,Stainless steel 304 or 316L

Protection grade： IP68

Unit weight ：100Kg

Ship weight ：105Kg

Mounting :Bracket、Special base

Continuous working days in rainy days：3-8 days

Battery capacity：DC12V/60W

Controller: light control, time control, overvoltage, undervoltage, short circuit, lightning protection, time constant function.

ENVIRONMENTAL

Air pressure: 86～106KPa

Temperature -:40℃~+60℃

Humidity: 95%RH(+25℃)
